Bending-resistant and torsion-resistant robot cable-Derul brand manufacture Wholesaler

Bending-resistant and torsion-resistant robot cable-Derul brand manufacture

spécification

Basic structure	Conductor+Insulation+Jacket
Conductor	Plain Copper/ Tinned Copper
Insulation	EPR
Braid	Kevlar/ Plain Copper/ Tinned Copper
Jacket	PUR/TPE/PCP

Renseignez-vous maintenant

INTRODUCTION

Derul brand bending-resistant and torsion-resistant flexible robot cable | Application scope:

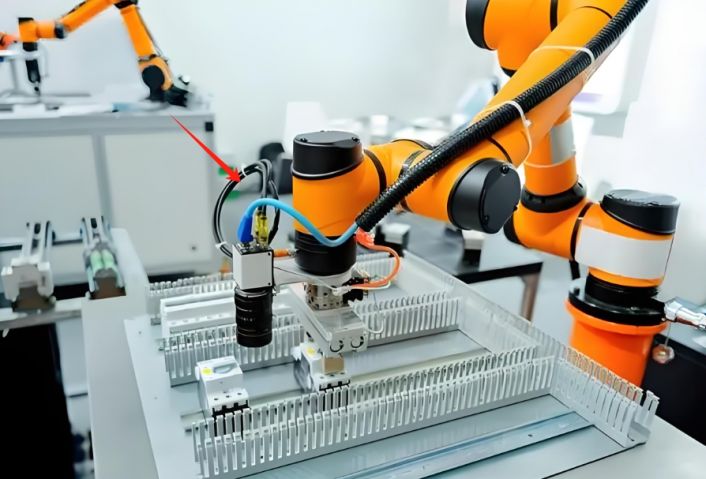

Robot cables are used as control and measurement signal transmission and power connection cables. They are installed in various situations where torsion and bending stress exist at the same time. They are widely used in the connection and assembly of welding robots and manipulators, connecting rotary or lifting worktables, or due to It involves installations where the movement of the cable cannot be set (e.g. drag chain systems).

Derul brand bending-resistant and torsion-resistant flexible robot cable | Product process structure:

Conductor: Multi-strand finely twisted or finely calibrated bundled ultra-fine bare copper wire (tinned wire please specify in advance)

Insulation: TPE core wire insulation, core wires (or wire pairs) twisted into cables

Shielded type: tinned copper wire wrapped

Sheath: Special polyurethane outer sheath

Derul brand bending-resistant and torsion-resistant flexible robot cable | Product electrical parameters:

● The bending radius for mobile installation is 7.5x cable diameter, and the bending radius for fixed installation is 4x cable diameter.

● The operating temperature for mobile installation is -40℃ to +90℃, and the operating temperature for fixed installation is -50℃ to +90℃

● The conductor structure refers to VDE 0295/IEC 60228 Category 6 conductor structure, multi-strand finely twisted or finely calibrated bundles of ultra-fine bare copper wires

● The core wire cross-section below 0.34 square meters conforms to DIN47100, and the core wire cross-section above 0.5 square meters conforms to VDE0293;

● Working voltage Uo/U: 48V, 300/500V for 0.5 square meters and above

● Insulation resistance＞20GΩxcm

● Test voltage: 1500V for 0.34 square meters and below, 3000V for 0.5 square meters and above

● Customizable torque angle +/-360 degrees/meter

AVANTAGES

● High-quality insulation and smooth wrapping make the cable have a longer service life under the simultaneous presence of torsion and bending stress;

● Special elastomer polyurethane outer sheath material with enhanced oil resistance, wear and cutting resistance, anti-microbial and hydrolysis resistance, and flame retardant;

●The characteristics of its outer sheath can also prevent other adjacent cables from adhering to it;

CAPACITÉ DE PERSONNALISATION

Whenever standards are not enough!

Considering different working conditions and equipment to be applied to, Derul's products are highly customized. The high customization of our cables can make sure that our products can best meet the demands in your practical application. We welcome you to send an inquiry with specific requirements to our professional sales, and we will provide a technical sheet with drawings of the cable and detailed specifications to you, and of course, a competitive quotation will be send to you soon after your confirmation on the technical sheet. This can lead to your successful and efficient purchasing.

You don't need to worry about the time cost of your customized purchasing. As the original manufacturer, we provide quick-response and "solution at once" services. Comparing to less-efficient communication about technical and quality issues with trading companies, we give our customers efficient feedback to every question raised from them, this is possible because of the close interconnection between our workshop, engineers and sales people.

FAQ

Q: Derul Cable est-il un fabricant ou une société commerciale ?

A: Derul Cable est un fabricant de câbles spécial basé à Shanghai.

Q: Le prix est-il négociable ?

A: Oui, le prix est négociable en fonction de la quantité achetée.

Q: Oui, le prix est négociable en fonction de la quantité achetée.

A: N’importe quelle quantité est OK à acheter pour le produit en stock. Pour les produits qui doivent être fabriqués après la commande, le MOQ est généralement de 100 à 200 m par type.

Q: Comment puis-je obtenir des échantillons ?

A: Après le paiement du coût potentiel, y compris le fret express et la confirmation de la dimension et de la structure du câble, nous organiserons l’échantillon et l’enverrons directement à votre porte.

Q: Le service OEM ou ODM est-il disponible ?

A: Les services OEM et ODM sont tous deux disponibles. Vous pouvez nous faire part de vos besoins et nous les évaluerons pour aller de l’avant.

Q: Quel est le temps de production habituel ?

A: Pour une quantité régulière, il faut généralement environ 15 à 25 jours pour produire.
