Supply of robot cables | highly flexible and anti-torsion robot arm cables for Sale

Supply of robot cables | highly flexible and anti-torsion robot arm cables

spécification

Basic structure	Conductor+Insulation+Jacket
Conductor	Plain Copper/ Tinned Copper
Insulation	EPR
Braid	Kevlar/ Plain Copper/ Tinned Copper
Jacket	PUR/TPE/PCP

Renseignez-vous maintenant Produit suivant

INTRODUCTION

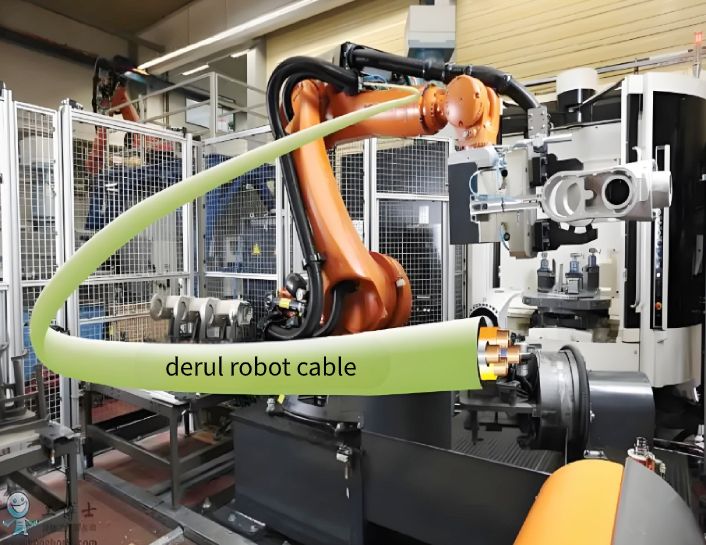

derul robot cable application scope:

Especially suitable for robots or three-dimensional motion applications, robots, logistics equipment, spindle drives, for high loads with torsional motion, completely oil-resistant, indoor and outdoor applications, radiation resistance, etc.

In industrial applications, more and more complex movements require the use of torsional or three-dimensional highly flexible cables, and these cables are required to have a service life similar to that used in linear energy chain systems.

Core, strand, shielding and jacket materials must be able to withstand the extrusion forces generated during bending as well as the changes in radial pressure caused by torsional movements. For this purpose, different "soft" structural elements such as viscose fibers, PTFE elements or other filling elements are used in highly flexible robot cables to absorb torsional forces.

Twisted cables place special requirements on braided shielding. Thanks to the use of a special PTFE sliding membrane, the shielding structure has been torsionally optimized and can compensate for movement errors to a certain extent.

Particularly for twistable bus cables, transmission characteristic parameters such as attenuation, cable load and signal quality must remain within a normal value range with minimal deviations during the entire use of the product. This is achieved by means of specially torsionally optimized insulating materials and attenuating elements with corresponding values.

High wear resistance is used in power, servo/control cables and bus cables. PUR sheath material effectively protects the torsion-optimized stranded elements from damage.

All highly flexible robot cables are tested with a length of 1 meter and a +/-180° twist test of 3.000.000-15000000 round-trip motions. In addition, we also conducted a test. Place the cable in a drag chain with a length of approx. 2500 mm and perform a 270° twist. During this period, because the centripetal force will subject the cable to extremely high loads and heavy impact forces, this situation usually occurs in industrial robot applications.

derul robot cable technical parameters:

Conductor: Fine bare copper stranded wire with high flexural strength (according to EN 60228 standard)

Insulating material: Insulating TPE material with high mechanical properties

Unit shielding: High torsional strength tinned copper wire braided shielding, optical coverage 85%

Outer sheath: low-viscosity, halogen-free, PUR-based mixture, particularly wear-resistant and highly flexible, suitable for energy chains

Operating temperature range: (mobile installation) -25 °C to +80 °C, bending radius 10 x d

Operating temperature range: (fixed installation) -40 °C to +80 °C, bending radius 4 x d

Maximum speed: 180°/s

Maximum torsional acceleration: 60 °/s2

Travel Distance: Suitable for robotic and 3D motion applications, Class 6

Twist: ±180° per 1 meter of cable length

Radiation resistance: high

Rated voltage: 300/500 V (in accordance with DIN VDE 0245 standard)

Test voltage: 2000 V (in accordance with DIN VDE 0281-2 standard)

Oil resistance: completely oil-resistant (according to DIN EN 50363-10-2 standard), Class 3

AVANTAGES

Anti-torsion, wear-resistant, oil-resistant, weather-resistant, corrosion-resistant, long service life,

Special structural design and materials enhance its wear resistance and bending resistance. There is a special tensile reinforcement layer inside, which greatly improves the service life and tensile strength of the product.

The special structural design enables the cable to extend its service life under the simultaneous presence of torsion and bending stress.

The special mixture outer sheath is oil-resistant, anti-microbial and hydrolysis-resistant, flame-retardant, and prevents other adjacent cables from adhering to it.

CAPACITÉ DE PERSONNALISATION

Whenever standards are not enough!

Considering different working conditions and equipment to be applied to, Derul's products are highly customized. The high customization of our cables can make sure that our products can best meet the demands in your practical application. We welcome you to send an inquiry with specific requirements to our professional sales, and we will provide a technical sheet with drawings of the cable and detailed specifications to you, and of course, a competitive quotation will be send to you soon after your confirmation on the technical sheet. This can lead to your successful and efficient purchasing.

You don't need to worry about the time cost of your customized purchasing. As the original manufacturer, we provide quick-response and "solution at once" services. Comparing to less-efficient communication about technical and quality issues with trading companies, we give our customers efficient feedback to every question raised from them, this is possible because of the close interconnection between our workshop, engineers and sales people.

FAQ

Q: Derul Cable est-il un fabricant ou une société commerciale ?

A: Derul Cable est un fabricant de câbles spécial basé à Shanghai.

Q: Le prix est-il négociable ?

A: Oui, le prix est négociable en fonction de la quantité achetée.

Q: Oui, le prix est négociable en fonction de la quantité achetée.

A: N’importe quelle quantité est OK à acheter pour le produit en stock. Pour les produits qui doivent être fabriqués après la commande, le MOQ est généralement de 100 à 200 m par type.

Q: Comment puis-je obtenir des échantillons ?

A: Après le paiement du coût potentiel, y compris le fret express et la confirmation de la dimension et de la structure du câble, nous organiserons l’échantillon et l’enverrons directement à votre porte.

Q: Le service OEM ou ODM est-il disponible ?

A: Les services OEM et ODM sont tous deux disponibles. Vous pouvez nous faire part de vos besoins et nous les évaluerons pour aller de l’avant.

Q: Quel est le temps de production habituel ?

A: Pour une quantité régulière, il faut généralement environ 15 à 25 jours pour produire.
