Special PUR Robot Control Cable | Anti-torsion cable manufacturer Supply

Special PUR Robot Control Cable | Anti-torsion cable manufacturer

spécification

Basic structure	Conductor+Insulation+Jacket
Conductor	Plain Copper/ Tinned Copper
Insulation	EPR
Braid	Kevlar/ Plain Copper/ Tinned Copper
Jacket	PUR/TPE/PCP

Renseignez-vous maintenant Produit suivant

INTRODUCTION

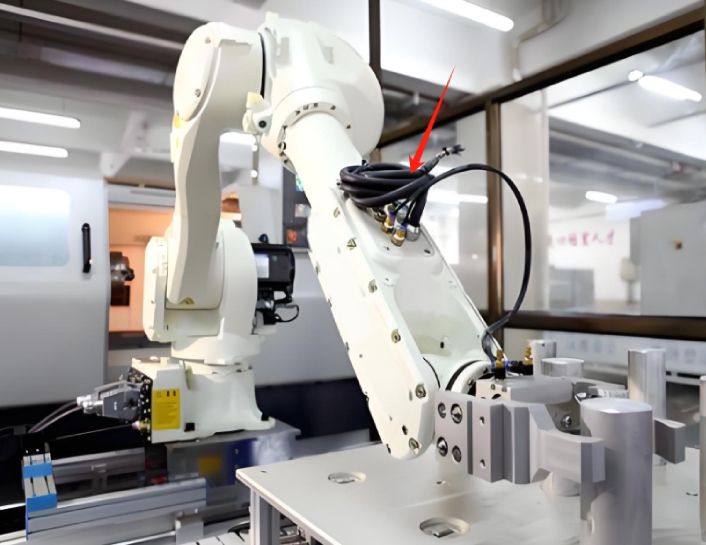

Applications of derul robot shielded control cable:

This kind of cable is specially designed for applications that require a high degree of bending and continuous movement and is widely used in: drag chain systems, robots and mobile drive systems, etc. The outer sheath material is wear-resistant, water-resistant, antibacterial, and flame-retardant, allowing the cable to take advantage of the drag chain system.

derul robot shielded control cable product features:

Anti-torsion, wear-resistant, long service life

Derul robot shielded control cable technical parameters:

Voltage: 300/500V

Test voltage: 2000V/5min (AC)

Twist angle: ±360°/0.5m

Minimum bending radius

Fixed laying: 4×cable outer diameter

Mobile installation: 7.5×cable outer diameter or less

derul robot shielded control cable temperature range:

Fixed laying: -30℃～90℃

Mobile installation: -20℃～90℃

Oil resistance: very good

Chemical resistance: Excellent resistance to acids, alkalis, solvents and various hydraulic oils

Weather resistance: UV resistance, excellent solar aging performance, suitable for outdoor use.

derul robot shielded control cable structure:

1. Conductor: VDE0295 Category 6

2. Insulation layer: special high-strength TPEE mixture

3. Special tensile reinforcement core

4. Inner sheath: elastomer mixture

5. Tinned copper wire wrapped shielding layer, optical coverage 100%

6. Outer sheath: special low viscosity wear-resistant PUR mixture

AVANTAGES

Special structural design and materials enhance its wear resistance and bending resistance. There is a special tensile reinforcement layer inside, which greatly improves the service life and tensile strength of the product.

The special structural design enables the cable to extend its service life under the simultaneous presence of torsion and bending stress.

The special mixture outer sheath is oil-resistant, anti-microbial and hydrolysis-resistant, flame-retardant, and prevents other adjacent cables from adhering to it.

CAPACITÉ DE PERSONNALISATION

Whenever standards are not enough!

Considering different working conditions and equipment to be applied to, Derul's products are highly customized. The high customization of our cables can make sure that our products can best meet the demands in your practical application. We welcome you to send an inquiry with specific requirements to our professional sales, and we will provide a technical sheet with drawings of the cable and detailed specifications to you, and of course, a competitive quotation will be send to you soon after your confirmation on the technical sheet. This can lead to your successful and efficient purchasing.

You don't need to worry about the time cost of your customized purchasing. As the original manufacturer, we provide quick-response and "solution at once" services. Comparing to less-efficient communication about technical and quality issues with trading companies, we give our customers efficient feedback to every question raised from them, this is possible because of the close interconnection between our workshop, engineers and sales people.

FAQ

Q: Derul Cable est-il un fabricant ou une société commerciale ?

A: Derul Cable est un fabricant de câbles spécial basé à Shanghai.

Q: Le prix est-il négociable ?

A: Oui, le prix est négociable en fonction de la quantité achetée.

Q: Oui, le prix est négociable en fonction de la quantité achetée.

A: N’importe quelle quantité est OK à acheter pour le produit en stock. Pour les produits qui doivent être fabriqués après la commande, le MOQ est généralement de 100 à 200 m par type.

Q: Comment puis-je obtenir des échantillons ?

A: Après le paiement du coût potentiel, y compris le fret express et la confirmation de la dimension et de la structure du câble, nous organiserons l’échantillon et l’enverrons directement à votre porte.

Q: Le service OEM ou ODM est-il disponible ?

A: Les services OEM et ODM sont tous deux disponibles. Vous pouvez nous faire part de vos besoins et nous les évaluerons pour aller de l’avant.

Q: Quel est le temps de production habituel ?

A: Pour une quantité régulière, il faut généralement environ 15 à 25 jours pour produire.
