spécification

Basic structure	Conductor+Insulation+Jacket
Conductor	Plain Copper/ Tinned Copper
Insulation	EPR
Braid	Kevlar/ Plain Copper/ Tinned Copper
Jacket	PUR/TPE/PCP

Renseignez-vous maintenant Produit suivant

INTRODUCTION

● derul industrial robot cable application scenarios:

This kind of cable is specially designed for applications that require a high degree of bending and continuous movement and is widely used in: drag chain systems, robots and mobile drive systems, etc. The outer sheath material is wear-resistant, water-resistant, antibacterial, and flame-retardant, which maximizes the advantages of this cable in drag chain systems.

Industrial machinery and machine tool industry

Automation equipment

Automobile industry

For use in power chains or moving parts of machinery

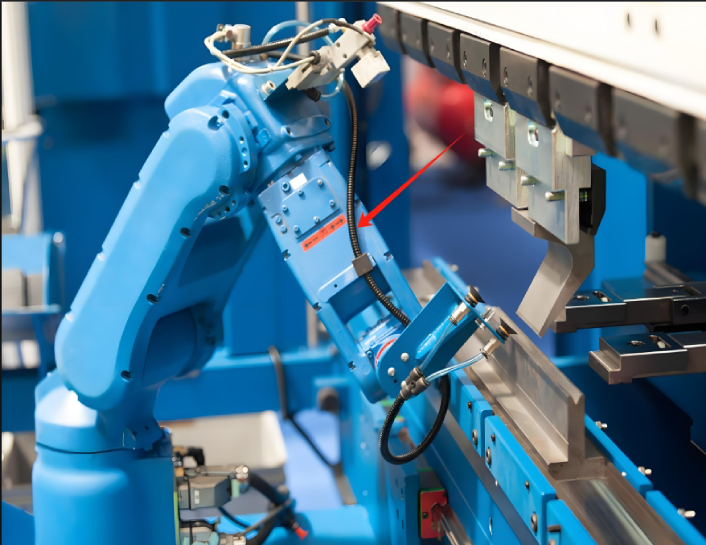

In the cable/pipe package for articulating arm robots and gantry robots

● derul industrial robot cable structure:

Conductor: Multi-strand ultra-fine finely twisted oxygen-free bare copper wire, conforming to VDE0295 CLASS 6 standard

Insulation: special mixed TPE/TPEE material

Stranding: core wire layer stranding or compound stranding

Tensile strength: special tensile reinforcement core

Inner sheath: special mixed TPE/PUR material

Core structure: Anti-twist structure layered, or grouped gap filling

Shielding: Tinned copper wire wrapped around the shielding layer, optical coverage 100%

Outer sheath: special mixed TPE/PUR material

Sheath color: black (RAL9005), gray (RAL7001), orange (RAL2003)

● technical parameters of derul industrial robot cable:

Rated voltage: 300/500V

Test voltage: 2000V/5min (AC)

Twist angle: ±360°/0.5m

Minimum bending radius:

Fixed laying: 4×cable outer diameter

Mobile installation: 7.5×cable outer diameter or less

temperature range:

Fixed laying: -30℃～90℃

Mobile installation: -20℃～90℃

Oil resistance: very good

Chemical resistance: Excellent resistance to acids, alkalis, solvents and various hydraulic oils

Weather resistance: UV resistance, excellent solar aging performance, suitable for outdoor use.

Ground protection core wire: G=including yellow/green two-color ground protection core wire

AVANTAGES

Anti-torsion, wear-resistant, long service life

Special structural design and materials enhance its wear resistance and bending resistance. There is a special tensile reinforcement layer inside, which greatly improves the service life and tensile strength of the product.

The special structural design enables the cable to extend its service life under the simultaneous presence of torsion and bending stress.

The outer sheath of a special mixture is oil-resistant, anti-microbial and hydrolytic, flame-retardant, and prevents other adjacent cables from adhering to it.

CAPACITÉ DE PERSONNALISATION

Whenever standards are not enough!

Considering different working conditions and equipment to be applied to, Derul's products are highly customized. The high customization of our cables can make sure that our products can best meet the demands in your practical application. We welcome you to send an inquiry with specific requirements to our professional sales, and we will provide a technical sheet with drawings of the cable and detailed specifications to you, and of course, a competitive quotation will be send to you soon after your confirmation on the technical sheet. This can lead to your successful and efficient purchasing.

You don't need to worry about the time cost of your customized purchasing. As the original manufacturer, we provide quick-response and "solution at once" services. Comparing to less-efficient communication about technical and quality issues with trading companies, we give our customers efficient feedback to every question raised from them, this is possible because of the close interconnection between our workshop, engineers and sales people.

FAQ

Q: Derul Cable est-il un fabricant ou une société commerciale ?

A: Derul Cable est un fabricant de câbles spécial basé à Shanghai.

Q: Le prix est-il négociable ?

A: Oui, le prix est négociable en fonction de la quantité achetée.

Q: Oui, le prix est négociable en fonction de la quantité achetée.

A: N’importe quelle quantité est OK à acheter pour le produit en stock. Pour les produits qui doivent être fabriqués après la commande, le MOQ est généralement de 100 à 200 m par type.

Q: Comment puis-je obtenir des échantillons ?

A: Après le paiement du coût potentiel, y compris le fret express et la confirmation de la dimension et de la structure du câble, nous organiserons l’échantillon et l’enverrons directement à votre porte.

Q: Le service OEM ou ODM est-il disponible ?

A: Les services OEM et ODM sont tous deux disponibles. Vous pouvez nous faire part de vos besoins et nous les évaluerons pour aller de l’avant.

Q: Quel est le temps de production habituel ?

A: Pour une quantité régulière, il faut généralement environ 15 à 25 jours pour produire.
