derul Industrial Ethernet CAT 6A cable | used in drag chains in industrial environments

spécification

Basic structure	Conductor+Insulation+Jacket
Conductor	Plain Copper/ Tinned Copper
Insulation	EPR
Braid	Kevlar/ Plain Copper/ Tinned Copper
Jacket	PUR/TPE/PCP

Renseignez-vous maintenant Produit suivant

INTRODUCTION

derul cat6a drag chain cable application:

It is widely used in control units with bending requirements. It is specially designed for drag chain tank chains, industrial Ethernet, robots (hands), industrial cameras, outdoor drag and other systems that can move freely and forcefully during continuous bending, while maintaining the Requirements for situations where the cable moves softly.

Technical parameters of derul cat6a drag chain cable:

Conductor material:multiple strands of pure oxygen-free bare copper wire

Conductor structure:7/0.19(±0.004)mm

Stranded outer diameter:0.5mm

Insulation material:HDPE(high density polyethylene)

Shielding material:Each pair of aluminum foil shielding,overall tinned copper mesh shielding

Tensile original:polyester yarn

Sheath material:elastic PVC/PUR polyurethane

Cable outer diameter:7.0±0.2mm

Cable color:green/blue/purple/black(optional)

Operating temperature:Rated temperature:-25℃~+80℃(the drag chain network cable can be customized for a temperature of-60℃~+105℃)

Characteristic impedance:100±15Ω,service life≥5 million,PUR polyurethane≥10 million

Bending radius:The drag chain network cable continues to move and the bending radius can be as small as 5*D

Remarks:Cables can provide samples and drawings for customized production of various drag chain cable series products.

AVANTAGES

derul CAT6A highly flexible shielded network cable is resistant to bending, folding, waterproof, oil-proof, cold-resistant, UV-resistant, and wear-resistant. Highly soft

CAPACITÉ DE PERSONNALISATION

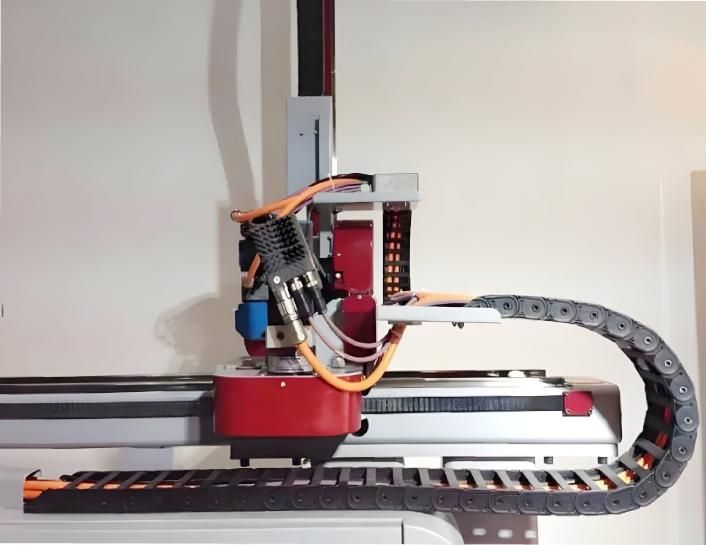

Whenever standards are not enough!

Considering different working conditions and equipment to be applied to, Derul's products are highly customized. The high customization of our cables can make sure that our products can best meet the demands in your practical application. We welcome you to send an inquiry with specific requirements to our professional sales, and we will provide a technical sheet with drawings of the cable and detailed specifications to you, and of course, a competitive quotation will be send to you soon after your confirmation on the technical sheet. This can lead to your successful and efficient purchasing.

You don't need to worry about the time cost of your customized purchasing. As the original manufacturer, we provide quick-response and "solution at once" services. Comparing to less-efficient communication about technical and quality issues with trading companies, we give our customers efficient feedback to every question raised from them, this is possible because of the close interconnection between our workshop, engineers and sales people.

FAQ

Q: Derul Cable est-il un fabricant ou une société commerciale ?

A: Derul Cable est un fabricant de câbles spécial basé à Shanghai.

Q: Le prix est-il négociable ?

A: Oui, le prix est négociable en fonction de la quantité achetée.

Q: Oui, le prix est négociable en fonction de la quantité achetée.

A: N’importe quelle quantité est OK à acheter pour le produit en stock. Pour les produits qui doivent être fabriqués après la commande, le MOQ est généralement de 100 à 200 m par type.

Q: Comment puis-je obtenir des échantillons ?

A: Après le paiement du coût potentiel, y compris le fret express et la confirmation de la dimension et de la structure du câble, nous organiserons l’échantillon et l’enverrons directement à votre porte.

Q: Le service OEM ou ODM est-il disponible ?

A: Les services OEM et ODM sont tous deux disponibles. Vous pouvez nous faire part de vos besoins et nous les évaluerons pour aller de l’avant.

Q: Quel est le temps de production habituel ?

A: Pour une quantité régulière, il faut généralement environ 15 à 25 jours pour produire.
