Supply industrial flexible drag chain cable CAT 5E

Supply industrial flexible drag chain cable CAT 5E | Chinese manufacturer

spécification

Basic structure	Conductor+Insulation+Jacket
Conductor	Plain Copper/ Tinned Copper
Insulation	EPR
Braid	Kevlar/ Plain Copper/ Tinned Copper
Jacket	PUR/TPE/PCP

Renseignez-vous maintenant Produit suivant

INTRODUCTION

derul industrial flexible cable network cable product introduction

derul industrial flexible cable network cable has electrical properties such as bending resistance, oil resistance, waterproofing, UV protection, and low temperature resistance. The cable is made of multiple ultra-fine finely twisted bare copper wires, 8 cores, 4 groups of twisted pairs and double shielding. It is especially suitable for EtherCAT and EtherNet/IP applications, seamless communication from the sensor/actuator level to the network, and frequent bending situations in industrial environments require shielding, impact-free and signal-stable information transmission, which can effectively resist electromagnetic wave interference. PUR sheath, resistant to various mineral oils, abrasions and chemical media。

derul industrial flexible cable network cable technical parameters:

Movement within drag chain:-20℃to 80℃

Operating temperature range:Movement within non-drag chain:-35℃to 80℃

Fixed laying without movement:-50℃to 80℃

Movement within drag chain:6.0X cable outer diameter

Bending radius:non-drag chain movement:5.0X cable outer diameter

Fixed laying without movement:4.0X cable outer diameter

Maximum acceleration:5 meters/second

Rated voltage:50 V

Characteristic impedance:100 Ohm+-15%

Conductor:Conforms to VDE 0295 Category 6 standard/24AWG

Insulation material:HD-PE

Core wire color:color distinction

Core wire stranding:4 pairs of core wires stranded

Shielding:Tinned copper mesh braid,optical coverage 90%

Outer sheath:polyether PUR,semi-extruded

Flame retardant:VW-2

Oil:Oil/cutting fluid/seawater and other liquids can be soaked

Halogen-free:Complies with EN 60754 standard

Lead-free:Compliant with 2011/65/EU(RoHS-II)standard

AVANTAGES

Derul industrial flexible network cable has electrical properties such as bending resistance, oil resistance, waterproof, UV protection, and low temperature resistance.

CAPACITÉ DE PERSONNALISATION

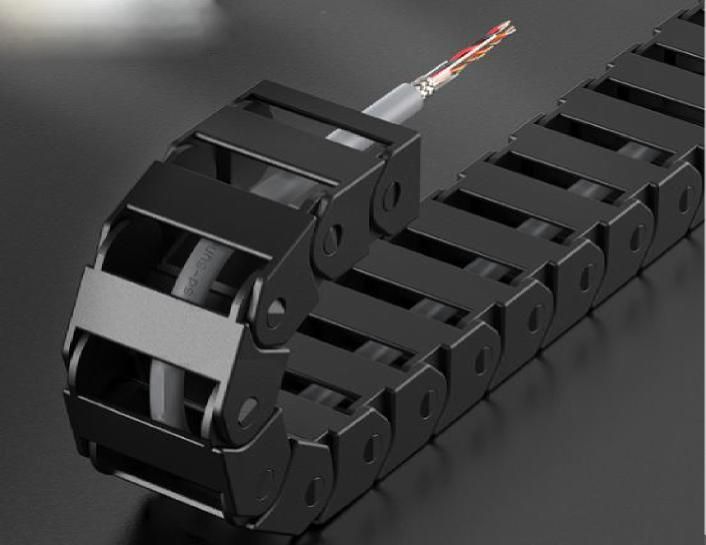

Whenever standards are not enough!

Considering different working conditions and equipment to be applied to, Derul's products are highly customized. The high customization of our cables can make sure that our products can best meet the demands in your practical application. We welcome you to send an inquiry with specific requirements to our professional sales, and we will provide a technical sheet with drawings of the cable and detailed specifications to you, and of course, a competitive quotation will be send to you soon after your confirmation on the technical sheet. This can lead to your successful and efficient purchasing.

You don't need to worry about the time cost of your customized purchasing. As the original manufacturer, we provide quick-response and "solution at once" services. Comparing to less-efficient communication about technical and quality issues with trading companies, we give our customers efficient feedback to every question raised from them, this is possible because of the close interconnection between our workshop, engineers and sales people.

FAQ

Q: Derul Cable est-il un fabricant ou une société commerciale ?

A: Derul Cable est un fabricant de câbles spécial basé à Shanghai.

Q: Le prix est-il négociable ?

A: Oui, le prix est négociable en fonction de la quantité achetée.

Q: Oui, le prix est négociable en fonction de la quantité achetée.

A: N’importe quelle quantité est OK à acheter pour le produit en stock. Pour les produits qui doivent être fabriqués après la commande, le MOQ est généralement de 100 à 200 m par type.

Q: Comment puis-je obtenir des échantillons ?

A: Après le paiement du coût potentiel, y compris le fret express et la confirmation de la dimension et de la structure du câble, nous organiserons l’échantillon et l’enverrons directement à votre porte.

Q: Le service OEM ou ODM est-il disponible ?

A: Les services OEM et ODM sont tous deux disponibles. Vous pouvez nous faire part de vos besoins et nous les évaluerons pour aller de l’avant.

Q: Quel est le temps de production habituel ?

A: Pour une quantité régulière, il faut généralement environ 15 à 25 jours pour produire.
