High Quality Garbage Crane Reeling Cable-China Deru Brand-Suppliers and Manufacturers

Garbage Crane Reel Cable-China Derul Brand-Suppliers and Manufacturers

spécification

Basic structure	Conductor+Insulation+Jacket
Conductor	Plain Copper/ Tinned Copper
Insulation	EPR
Braid	Kevlar/ Plain Copper/ Tinned Copper
Jacket	PUR/TPE/PCP

Renseignez-vous maintenant

INTRODUCTION

Chinese brand-Derul garbage crane drum cable |Application scope:

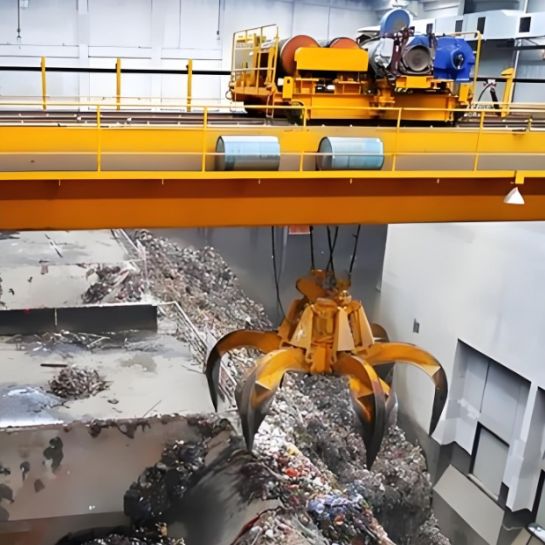

Suitable for waste incineration power plants, mining construction sites, hoisting sites, large logistics transfer sites, ports and terminals and other places, in marine grabs, garbage grabs, cleaning machine grabs, mobile cranes and cranes and other equipment Wide range of applications.

Chinese brand - Derul garbage crane drum cable | Characteristic requirements:

◆Flexibility and bendability

◆High tensile strength, tear resistance and wear resistance

◆Excellent oil resistance, abrasion resistance, cold resistance, weather resistance, acid and alkali resistance, UV resistance, suitable for outdoor use

Chinese brand-Derul garbage crane drum cable|Product structure:

Conductor: Multi-strand finely twisted oxygen-free copper wire conforms to VDEO295 CLASS 5 standard

Insulation: Special high-strength elastomer insulation

Color code: black number

Cabling: grouped short pitch stranding, center/edge filled with tensile elements

Inner sheath: wear-resistant, oil-resistant nitrile/PUR inner sheath

Reinforcement layer: aramid braided reinforcement layer

Outer sheath: wear-resistant, oil-resistant polyurethane (PUR) sheath

Sheath color: yellow/black

Chinese Brand-Derul Garbage Crane Reeling Cable|Technical Description:

Rated voltage: U₀/U 0.6/1kV

Test voltage: 3500V/5min

Minimum bending radius:

Fixed laying: 6×D (cable outer diameter)

Mobile installation: 10×D (cable outer diameter)

Maximum pulling force: 20N/mm²

Maximum moving speed: 180m/min

Operating temperature

Fixed laying: -25℃ to +70℃

Mobile installation: -15℃ to +70℃

Flame retardancy: in line with IEC60332-1

AVANTAGES

※Suitable for waste incineration power plants, the cable does not bulge, deform, core-free, and is corrosion-resistant

※Using a unique double sheath structure design, with bullet-proof and tensile fibers woven between the sheaths to effectively avoid cable

Twists, bulges, and deformations occur during use.

※Using imported PUR polyurethane material, high strength and high wear resistance, effectively protecting the cable from external forces

The impact of rolling and dragging greatly extends the service life of cables.

※Technical support for foreign cables from Germany, France, Italy and other countries, which can replace imported cables and is cost-effective

※Customized products can be designed according to the actual usage conditions of customers.

※Short delivery cycle and fast delivery

CAPACITÉ DE PERSONNALISATION

Whenever standards are not enough!

Multiple strands of finely twisted oxygen-free copper wire, conforming to VDE0295 CLASS 5 standard

Nitrile rubber material is used as the outer sheath, which has high strength and high wear resistance, effectively protecting the cable from external

deformation due to force, greatly extending the service life of the cable

Technical support for foreign cables from Germany, France, Italy and other countries, which can replace imported cables and is cost-effective

Customized products can be designed according to the actual usage conditions of customers.

Short delivery cycle and fast delivery

FAQ

Q: Derul Cable est-il un fabricant ou une société commerciale ?

A: Derul Cable est un fabricant de câbles spécial basé à Shanghai.

Q: Le prix est-il négociable ?

A: Oui, le prix est négociable en fonction de la quantité achetée.

Q: Oui, le prix est négociable en fonction de la quantité achetée.

A: N’importe quelle quantité est OK à acheter pour le produit en stock. Pour les produits qui doivent être fabriqués après la commande, le MOQ est généralement de 100 à 200 m par type.

Q: Comment puis-je obtenir des échantillons ?

A: Après le paiement du coût potentiel, y compris le fret express et la confirmation de la dimension et de la structure du câble, nous organiserons l’échantillon et l’enverrons directement à votre porte.

Q: Le service OEM ou ODM est-il disponible ?

A: Les services OEM et ODM sont tous deux disponibles. Vous pouvez nous faire part de vos besoins et nous les évaluerons pour aller de l’avant.

Q: Quel est le temps de production habituel ?

A: Pour une quantité régulière, il faut généralement environ 15 à 25 jours pour produire.
