High Quality Supply rov underwater cable | China Derul manufacturer

Supply rov underwater cable | China Derul manufacturer

spécification

Basic structure	Conductor+Insulation+Jacket
Conductor	Plain Copper/ Tinned Copper
Insulation	EPR
Braid	Kevlar/ Plain Copper/ Tinned Copper
Jacket	PUR/TPE/PCP

Renseignez-vous maintenant Produit suivant

INTRODUCTION

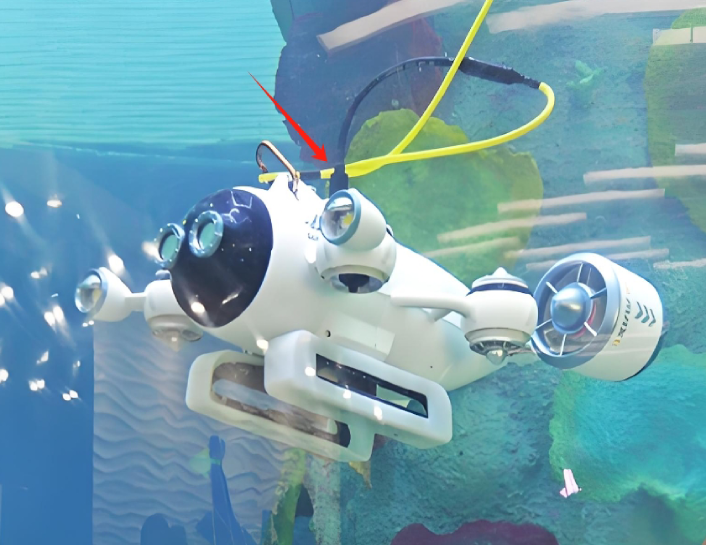

[China Derul Brand ROV Underwater Cable] Application fields:

Waterproof cables are suitable for high watertight, twist-resistant multi-core comprehensive cables in the fields of ships, offshore oil platforms, deep-sea resource exploration and other fields. They can also be used for various types of submersible motor lead wires, and telescopic/drag wires and cables in deep water. , power connection for submersible pumps and various underwater electrical appliances from underwater to above water

[China Derul Brand ROV Underwater Cable] Features:

1. The conductor is made of high-purity oxygen-free copper, which has low signal transmission attenuation.

2. The shielding is made of high-density braiding of bare copper to effectively block external electromagnetic interference.

3. Characteristic impedance 75±3Ω

4. High-quality waterproof and cold-resistant polyurethane sheath, anti-aging, wear-resistant and highly flexible

5. Operating temperature range: -25℃ to 70℃

[China Derul Brand ROV Underwater Cable] technical parameters:

Cable conductor:

Multi-stranded fine annealed oxygen-free copper wire precision stranded conductor, complying with DIN VDE 0295 Class 6 standard and IEC 60228 Class 6 standard

Cable insulation:

Elastomer or fluoroplastic, etc.

Wire core identification:

Colored core wire or black wire body with white digital code, 3 cores and above with yellow and green grounding wire (yellow and green optional)

Cable specifications:

Customized specifications

Cabling method:

Optimum pitch twisted cable

Torsion layer:

Aramid yarn braid

Cable jacket:

TPU thermoplastic polyurethane elastomer blend

Sheath color:

Black RAL9005, yellow RAL1016, other colors can be customized according to RAL color card

Rated voltage: 600/1000V

Test voltage: 3500V voltage test for 5 minutes without breakdown

Laying distance: 80~150 meters

Acceleration:

50m/S

Moving speed:

2m/S

Operating temperature: -40~+105℃

Bending radius:

Fixed installation:

5*cable diameter;

Mobile installation: 6*cable diameter

Oil resistance properties:

Comply with IEC60811-2-1 standard requirements:

Flame retardant properties meet the requirements of IEC60332-1 standard

AVANTAGES

Waterproof cables can be used in deep water, especially deep-water cables for ships that can be used in deep water and have longitudinal watertight properties so that seawater will not penetrate into the cable. The insulation layer uses polyethylene, PVC, or polyperfluoroethylene-propylene sealant, which is a non-flowing sealant. The outer sheath uses chlorinated polyethylene material. Because the insulation of the product of the present invention uses PE or PVC material and the outer sheath uses chlorinated polyethylene material. , which makes the cable of the present invention have the advantages of low smoke, low toxicity, good elasticity, natural cross-linking in the air and good water blocking effect.

CAPACITÉ DE PERSONNALISATION

Whenever standards are not enough!

Considering different working conditions and equipment to be applied to, Derul's products are highly customized. The high customization of our cables can make sure that our products can best meet the demands in your practical application. We welcome you to send an inquiry with specific requirements to our professional sales, and we will provide a technical sheet with drawings of the cable and detailed specifications to you, and of course, a competitive quotation will be send to you soon after your confirmation on the technical sheet. This can lead to your successful and efficient purchasing.

You don't need to worry about the time cost of your customized purchasing. As the original manufacturer, we provide quick-response and "solution at once" services. Comparing to less-efficient communication about technical and quality issues with trading companies, we give our customers efficient feedback to every question raised from them, this is possible because of the close interconnection between our workshop, engineers and sales people.

FAQ

Q: Derul Cable est-il un fabricant ou une société commerciale ?

A: Derul Cable est un fabricant de câbles spécial basé à Shanghai.

Q: Le prix est-il négociable ?

A: Oui, le prix est négociable en fonction de la quantité achetée.

Q: Oui, le prix est négociable en fonction de la quantité achetée.

A: N’importe quelle quantité est OK à acheter pour le produit en stock. Pour les produits qui doivent être fabriqués après la commande, le MOQ est généralement de 100 à 200 m par type.

Q: Comment puis-je obtenir des échantillons ?

A: Après le paiement du coût potentiel, y compris le fret express et la confirmation de la dimension et de la structure du câble, nous organiserons l’échantillon et l’enverrons directement à votre porte.

Q: Le service OEM ou ODM est-il disponible ?

A: Les services OEM et ODM sont tous deux disponibles. Vous pouvez nous faire part de vos besoins et nous les évaluerons pour aller de l’avant.

Q: Quel est le temps de production habituel ?

A: Pour une quantité régulière, il faut généralement environ 15 à 25 jours pour produire.
