spécification

Basic structure	Conductor+Insulation+Jacket
Conductor	Plain Copper/ Tinned Copper
Insulation	EPR
Braid	Kevlar/ Plain Copper/ Tinned Copper
Jacket	PUR/TPE/PCP

Renseignez-vous maintenant Produit suivant

INTRODUCTION

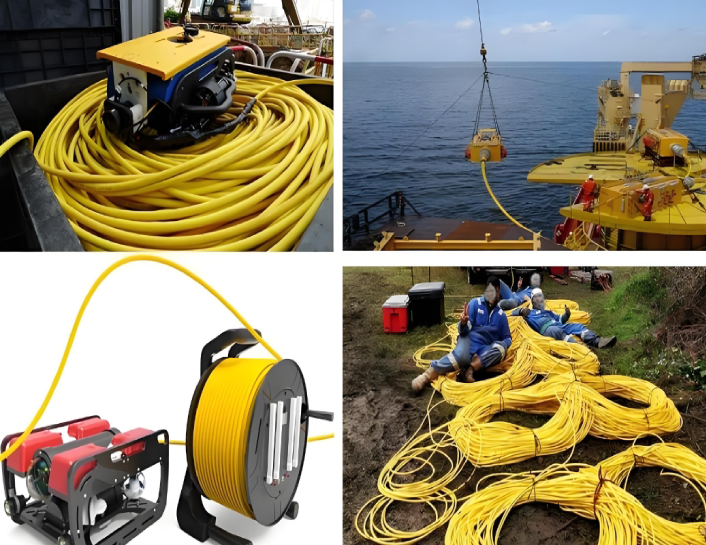

Applications of China Derul brand seawater-proof underwater equipment special cables:

PUR waterproof cable designed with polyether polyurethane material as sheath have excellent waterproof and seawater corrosion resistance. They are specially used in a variety of occasions and environments with waterproof requirements and can be immersed in water for long periods of time. Shanghai Jiarou Cable adopts a flexible structure to design this type of cable to ensure the cable's fixed or mobile installation and use needs underwater.

China Derul brand seawater-proof underwater equipment cable | Product design description:

The conductor structure of bare copper or tinned copper can be designed, and multiple strands are twisted and bundled;

Various structures such as power type, control type, data signal transmission feedback type, and co

mposite type can be designed;

The shielded structure uses aluminum foil Mylar/tinned copper wire braiding to design the shielding layer of the cable. According to needs, a separate shielding + total shielding/overall shielding structure can be designed;

Select galvanized tensile soft steel wire rope, Kevlar tensile fiber, TP rope and other materials to design the load-bearing tensile components of the cable;

Single or double layer sheath can be designed;

The tensile and torsion-resistant warp and weft fiber braid can be designed as needed;

The waterproof polyurethane PUR material is used as the outer sheath design of the cable;

China Derul brand seawater-proof underwater equipment cable|Product main parameters:

Rated voltage: core wire <0.5mm2, 300/300V; core wire ≥0.5mm2, 300/500V;

Test voltage: 2000V

Temperature range: -30~+80℃;

Mobile bending installation radius: 7.5~10*D (cable outer diameter)

Comply with certification: CE RoHS;

For more Deru high-quality waterproof cable products, welcome to consult us

AVANTAGES

t has excellent soft movement performance and is suitable for underwater fixed or mobile installation applications;

Shielded structural design, the cable has excellent anti-electromagnetic interference performance;

A variety of load-bearing component designs enhance the tensile performance of the cable, and its tensile strength can be customized according to needs;

The anti-torsion structural design ensures the anti-torsion requirements of the cable and avoids problems such as twisting, spinning, and deformation of the cable during frequent movement;

The waterproof polyurethane material sheath design makes the cable excellent in waterproofing and seawater corrosion resistance. The cable also has high wear resistance, oil resistance, acid and alkali corrosion resistance, temperature resistance, weather resistance, tear resistance, aging resistance, mechanical fatigue resistance and other properties;

CAPACITÉ DE PERSONNALISATION

Whenever standards are not enough!

Multiple strands of finely twisted oxygen-free copper wire, conforming to VDE0295 CLASS 5 standard

Nitrile rubber material is used as the outer sheath, which has high strength and high wear resistance, effectively protecting the cable from external

deformation due to force, greatly extending the service life of the cable

Technical support for foreign cables from Germany, France, Italy and other countries, which can replace imported cables and is cost-effective

Customized products can be designed according to the actual usage conditions of customers.

Short delivery cycle and fast delivery

FAQ

Q: Derul Cable est-il un fabricant ou une société commerciale ?

A: Derul Cable est un fabricant de câbles spécial basé à Shanghai.

Q: Le prix est-il négociable ?

A: Oui, le prix est négociable en fonction de la quantité achetée.

Q: Oui, le prix est négociable en fonction de la quantité achetée.

A: N’importe quelle quantité est OK à acheter pour le produit en stock. Pour les produits qui doivent être fabriqués après la commande, le MOQ est généralement de 100 à 200 m par type.

Q: Comment puis-je obtenir des échantillons ?

A: Après le paiement du coût potentiel, y compris le fret express et la confirmation de la dimension et de la structure du câble, nous organiserons l’échantillon et l’enverrons directement à votre porte.

Q: Le service OEM ou ODM est-il disponible ?

A: Les services OEM et ODM sont tous deux disponibles. Vous pouvez nous faire part de vos besoins et nous les évaluerons pour aller de l’avant.

Q: Quel est le temps de production habituel ?

A: Pour une quantité régulière, il faut généralement environ 15 à 25 jours pour produire.
