Supply Cable Storage Basket Spreader Reel Cable - China Suppliers and Manufacturers Company

Cable basket spreader cableCable basket spreader cable

Supply Cable Storage Basket Spreader Cable - China Manufacturers and Suppliers

spécification

Basic structure	Conductor+Insulation+Jacket
Conductor	Plain Copper/ Tinned Copper
Insulation	EPR
Braid	Kevlar/ Plain Copper/ Tinned Copper
Jacket	PUR/TPE/PCP

Renseignez-vous maintenant Produit suivant

INTRODUCTION

China-Derul brand cable storage basket spreader cable | Product application:

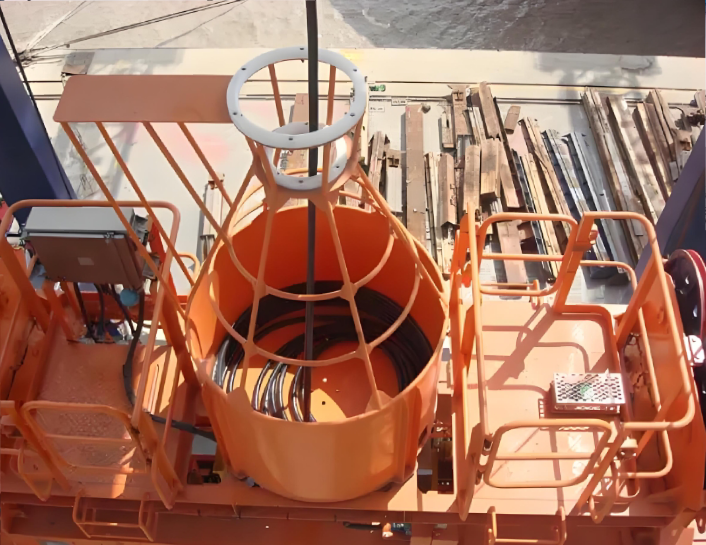

The cable storage basket spreader cable is used to collect and release the cable through the cable storage basket. It is widely used in lifting sites in ports, docks, construction sites and other occasions. It is soft, wear-resistant, tensile-resistant and torsion-resistant. This type of cable is The basic characteristics of the design are used for vertical movement and have excellent performance to adapt to high-intensity lifting and curling.

China-Derul brand cable storage basket spreader cable | product structure design

The designed cable adopts a double-layer sheath structure design with reinforced central bearing capacity, and has better cable characteristics to ensure frequent winding, lifting and lowering of the cable storage basket and spreader operations:

Cable conductor: Oxygen-free bare copper wire stranded and bundled, referring to VDE 0295/CLASS Category 5 or 6 conductor standards, full square design;

Cable insulation: high quality, high mechanical properties, soft hybrid elastomer material;

Core wire design: Torsion-free, flexible and anti-torsion structural design with optimized cable pitch;

Core wire distinction: color wire core or digital code distinction; G=with yellow/green two-color grounding protection mark, X=without yellow/green two-color grounding protection mark;

Tensile components: galvanized tensile soft steel wire ropes, Kevlar tensile fibers and other metal or non-metallic load-bearing components to enhance the tensile design of the cable;

Windproof element: lead bead chain (optional);

Inner sheath: Optional elastomer nitrile or polyurethane material, low viscosity strong extrusion design;

Braided layer: Fiber-reinforced warp and weft braided cable body to enhance the cable’s tensile and torsion resistance;

Outer sheath: high-quality imported polyurethane TPU/PUR material;

China-Derul brand cable storage basket spreader cable|Main product parameters：

Rated voltage: 0.6/1KV and below voltage range can be customized;

Test voltage: 3500V/5min;

Temperature range: -40~+90℃ temperature range can be customized;

Bending radius: 8~10xD (mobile installation);

For cable storage basket (spreader) cables used in lifting situations, Shanghai Jiarou Cable’s optimized material selection and structural design, especially the use of windproof parts-lead bead chains, ensure that the cables have better adaptability. Provide necessary protection for mobile cables in various lifting situations. Friends in need are welcome to consult and purchase:

AVANTAGES

It has excellent soft movement performance, which can meet the frequent mobile installation of cables under the cable storage basket and spreader equipment, and is suitable for vertical lifting applications;

The central load-bearing reinforced design enhances the tensile performance of the cable, resolves tension and ensures free hanging cable take-up, pay-off and long-distance deflection;

For installation applications in special strong wind environments such as ports and docks, lead bead chains can be added to the cable to increase the weight of the cable and achieve windproof purposes;

Special anti-torsion design prevents cable distortion and deformation during mobile operation;

Excellent imported material selection, the cable has excellent environmental resistance, high strength, wear resistance, oil resistance, water resistance, acid and alkali corrosion resistance, temperature resistance, weather resistance, tear resistance, aging resistance, and anti-cracking, which can meet the requirements of cable storage basket and spreader operations. Various lifting and hoisting situations.

CAPACITÉ DE PERSONNALISATION

Whenever standards are not enough!

Multiple strands of finely twisted oxygen-free copper wire, conforming to VDE0295 CLASS 5 standard

Nitrile rubber material is used as the outer sheath, which has high strength and high wear resistance, effectively protecting the cable from external

deformation due to force, greatly extending the service life of the cable

Technical support for foreign cables from Germany, France, Italy and other countries, which can replace imported cables and is cost-effective

Customized products can be designed according to the actual usage conditions of customers.

Short delivery cycle and fast delivery

FAQ

Q: Derul Cable est-il un fabricant ou une société commerciale ?

A: Derul Cable est un fabricant de câbles spécial basé à Shanghai.

Q: Le prix est-il négociable ?

A: Oui, le prix est négociable en fonction de la quantité achetée.

Q: Oui, le prix est négociable en fonction de la quantité achetée.

A: N’importe quelle quantité est OK à acheter pour le produit en stock. Pour les produits qui doivent être fabriqués après la commande, le MOQ est généralement de 100 à 200 m par type.

Q: Comment puis-je obtenir des échantillons ?

A: Après le paiement du coût potentiel, y compris le fret express et la confirmation de la dimension et de la structure du câble, nous organiserons l’échantillon et l’enverrons directement à votre porte.

Q: Le service OEM ou ODM est-il disponible ?

A: Les services OEM et ODM sont tous deux disponibles. Vous pouvez nous faire part de vos besoins et nous les évaluerons pour aller de l’avant.

Q: Quel est le temps de production habituel ?

A: Pour une quantité régulière, il faut généralement environ 15 à 25 jours pour produire.
