Supply of reeling cable for stacker and reclaimer-Global quality manufacturer Supply

Supply of reeling cable for stacker and reclaimer-Global quality manufacturer

spécification

Basic structure	Conductor+Insulation+Jacket
Conductor	Plain Copper/ Tinned Copper
Insulation	EPR
Braid	Kevlar/ Plain Copper/ Tinned Copper
Jacket	PUR/TPE/PCP

Renseignez-vous maintenant

INTRODUCTION

DeRu stacker and reclaimer reeling cable|Application scope:

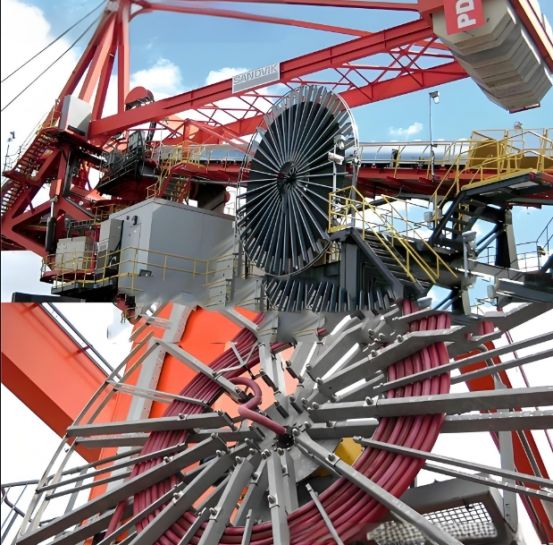

The product is used in reels or reels of stackers, reclaimers and ship unloaders that require the use of flat cables, and is used in ports, docks, metallurgy, steel, coal mines, power plants, cement plants and other occasions.

Deru stacker and reclaimer reeling cable|product structure：

Conductor: Multi-strand finely twisted tinned copper wire conforming to VDEO295 CLASS 5 standard

Conductor shielding: Each core is wrapped with semi-conductive tape

Insulation: Special high-strength ethylene-propylene insulation

Insulation shielding: Each core is wrapped with semi-conductive tape + tinned copper braid

Ground wire: Each core is tinned copper wire braided, with a density of more than 80%

Optical fiber: single-mode/multi-mode optical fiber 1~24 cores (50/125, 62.5/125, 9/125)

Core wire structure: one-line arrangement

Outer sheath: wear-resistant, oil-resistant nitrile/PCP sheath

Sheath color: gray (RAL7001)/black (RAL9005)

Deru stacker and reclaimer reeling cable|technical description:

Rated voltage: U₀/U 3.6/6~12/20kV

Test voltage: 3.5 U₀

Minimum bending radius:

Fixed laying: 8×D (cable outer diameter)

Mobile installation: 10×D (cable outer diameter)

Maximum pulling force: 15N/mm²

Operating temperature

Fixed laying: -40℃ to +90℃

Mobile installation: -20℃ to +90℃

Flame retardancy: in line with IEC60332-1

AVANTAGES

Multiple strands of finely twisted oxygen-free copper wire, conforming to VDE0295 CLASS 5 standard

Nitrile rubber material is used as the outer sheath, which has high strength and high wear resistance, effectively protecting the cable from external

deformation due to force, greatly extending the service life of the cable

Technical support for foreign cables from Germany, France, Italy and other countries, which can replace imported cables and is cost-effective

Customized products can be designed according to the actual usage conditions of customers.

Short delivery cycle and fast delivery

CAPACITÉ DE PERSONNALISATION

Whenever standards are not enough!

Considering different working conditions and equipment to be applied to, Derul's products are highly customized. The high customization of our cables can make sure that our products can best meet the demands in your practical application. We welcome you to send an inquiry with specific requirements to our professional sales, and we will provide a technical sheet with drawings of the cable and detailed specifications to you, and of course, a competitive quotation will be send to you soon after your confirmation on the technical sheet. This can lead to your successful and efficient purchasing.

You don't need to worry about the time cost of your customized purchasing. As the original manufacturer, we provide quick-response and "solution at once" services. Comparing to less-efficient communication about technical and quality issues with trading companies, we give our customers efficient feedback to every question raised from them, this is possible because of the close interconnection between our workshop, engineers and sales people.

FAQ

Q: Derul Cable est-il un fabricant ou une société commerciale ?

A: Derul Cable est un fabricant de câbles spécial basé à Shanghai.

Q: Le prix est-il négociable ?

A: Oui, le prix est négociable en fonction de la quantité achetée.

Q: Oui, le prix est négociable en fonction de la quantité achetée.

A: N’importe quelle quantité est OK à acheter pour le produit en stock. Pour les produits qui doivent être fabriqués après la commande, le MOQ est généralement de 100 à 200 m par type.

Q: Comment puis-je obtenir des échantillons ?

A: Après le paiement du coût potentiel, y compris le fret express et la confirmation de la dimension et de la structure du câble, nous organiserons l’échantillon et l’enverrons directement à votre porte.

Q: Le service OEM ou ODM est-il disponible ?

A: Les services OEM et ODM sont tous deux disponibles. Vous pouvez nous faire part de vos besoins et nous les évaluerons pour aller de l’avant.

Q: Quel est le temps de production habituel ?

A: Pour une quantité régulière, il faut généralement environ 15 à 25 jours pour produire.
